China Supplier Custom Size H Beam Construction Support
Durable and versatile H Beams designed for construction formwork and scaffolding. Engineered for strength, stability, and ease of use in any project.Our H Beams are high-performance wood beams ideal for construction applications where strength and precision matter. Made from carefully selected timber, these beams are a reliable solution for supporting concrete formwork, scaffolding,and temporary structures.
- Product Introduction
Durable and versatile H Beams designed for construction formwork and scaffolding. Engineered for strength, stability and ease of use in any project.
Our H Beams are high-performance wood beams ideal for construction applications where strength and precision matter.Made from carefully selected timber,these beams are a reliable solution for supporting concrete formwork,scaffolding and temporary structures.

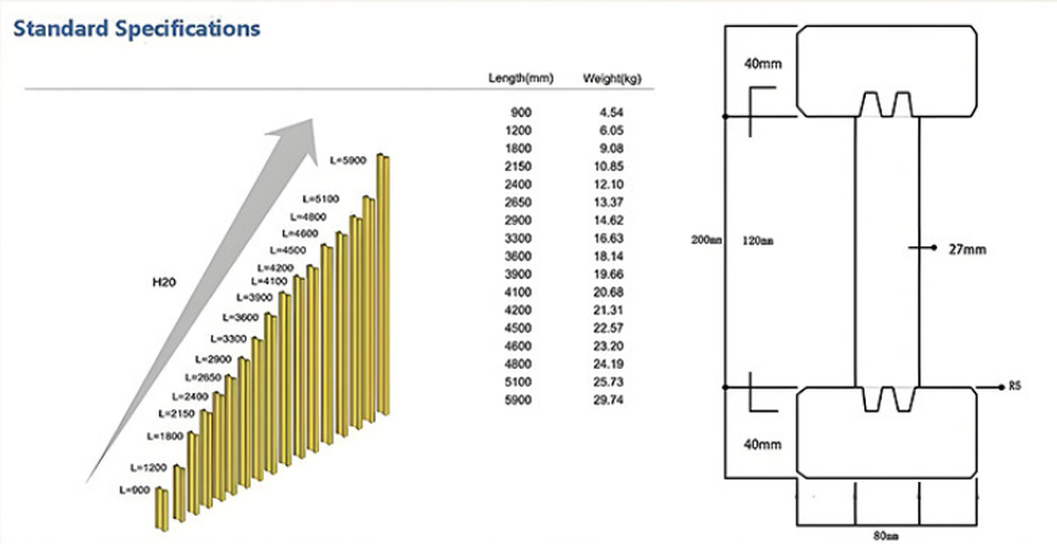

Product Specification
|
Product Name |
H Beam |
| Unit Weight | 5.0kg/m |
| Beam Height | 200mm |
| Flange Width | 80mm |
| Flange Thickness | 40mm |
| Web Thickness | 27/30mm |
|
Lenth |
1.9m-5.9m |
|
Flange |
Pine/Spruce |
|
Core |
Plywood/ 3Ply solid wood( made by poplar/ Birch/Pine) |
|
Glue |
Phenolic Glue |
| Features | High standardization, strong versatility and fast construction speed. High rigidity, light weight and superior bearing capacity. Eco-friendly, made of recycled material,low cost,reliable performance and reusable. Easy assembly and disassembly, flexible application. Convenient for transportation, installation and dismantling.Firm fixation and good nail holding power. |
Why Choose
The H20 timber beam is a key component in the internationally used building formwork system. It features light weight, high strength, excellent straightness, low deformation, and surface resistance to water, acids, and alkalis. It can be recycled year-round with low amortized costs, and is compatible with both domestic and international professional formwork systems.
It is widely applicable to various formwork systems, including:
Horizontal formwork systems
Vertical formwork systems (wall formwork, column formwork, hydraulic climbing formwork, etc.)
Variable curved formwork systems
Special-shaped formwork
The straight wall formwork using H20 timber beams is demountable and easy to assemble. It can be combined into different sizes of formwork within a certain range, offering high flexibility. With high rigidity,it is convenient to extend both horizontally and vertically,enabling one-time concrete pouring over 10 meters in height. Due to the light weight of the materials,the assembled formwork is much lighter than traditional steel formwork.
The system's components are highly standardized, reusable, and meet environmental protection requirements.

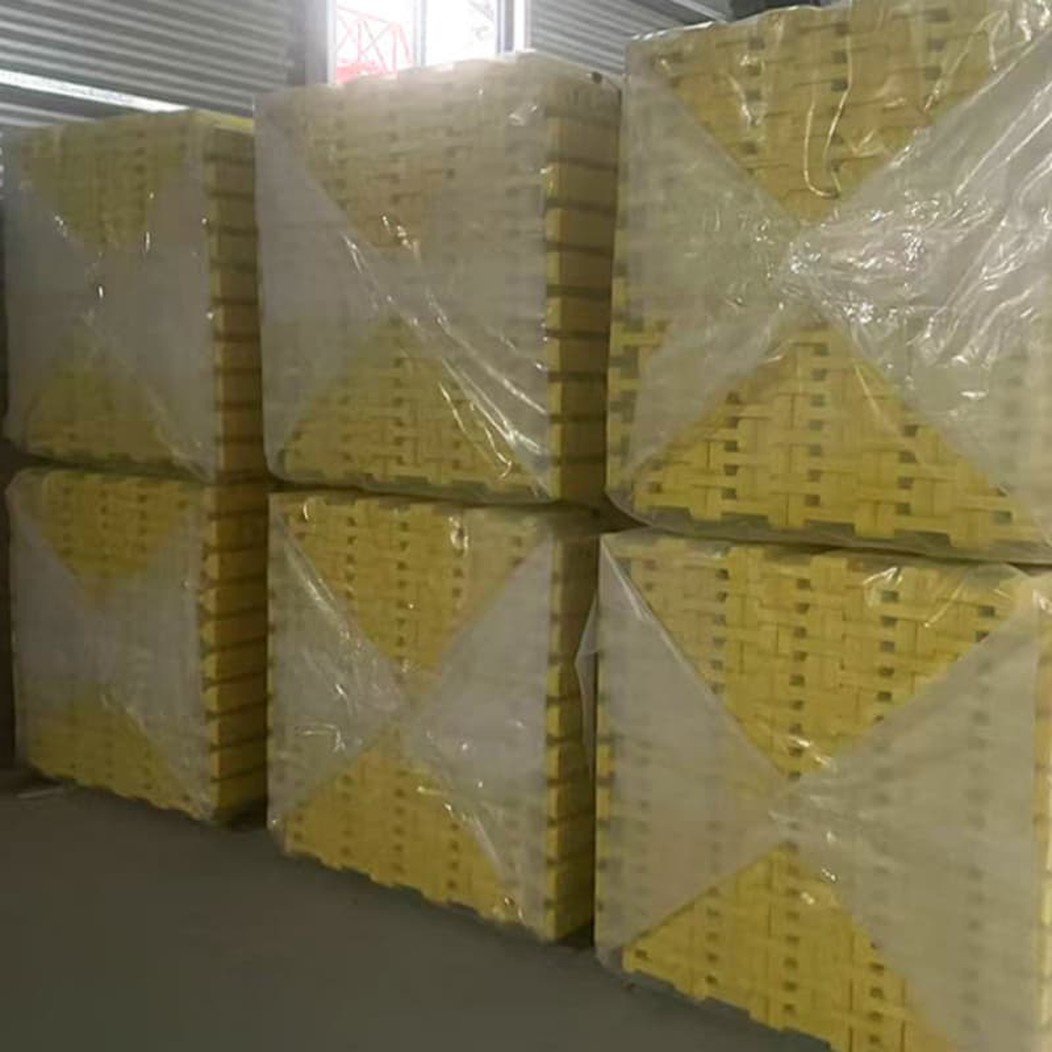

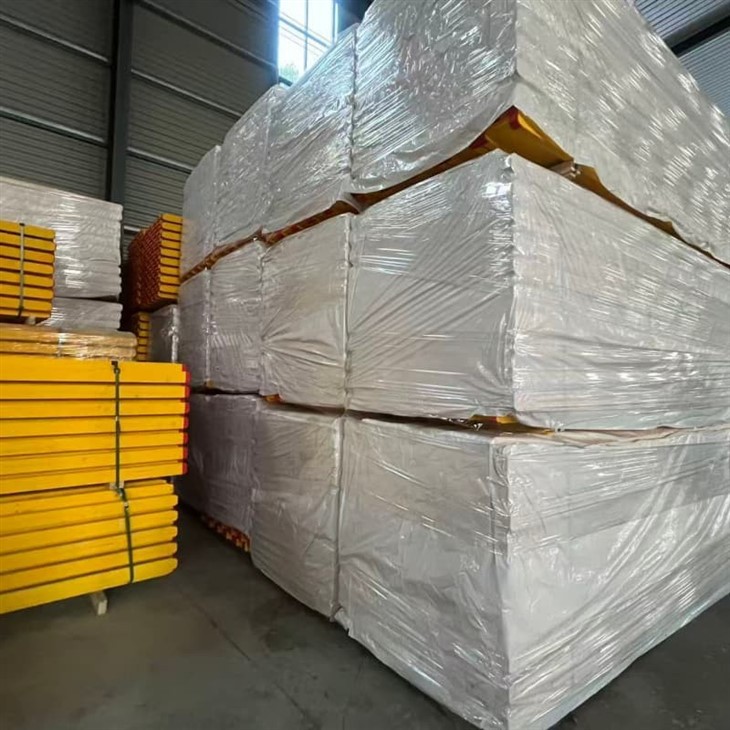

Packing
Our Service Processes
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
FAQ
Q: What is the minimum order quantity (MOQ) for wood panels?
A: Usually 50-100 pieces.
Q: Do you accept custom or oversize production?
A: Yes, custom and large-size orders are available.
Q: Do you provide free samples?
A: Yes, free samples are available if the requested panels are in stock.
Q: What is the quality warranty period for orders?
A: 2 years. We will replace damaged panels with new ones.
Q: What is the lead time for regular orders?
A: Approximately 7-15 working days.
Hot Tags: china supplier custom size h beam construction support, China china supplier custom size h beam construction support manufacturers, suppliers, factory
