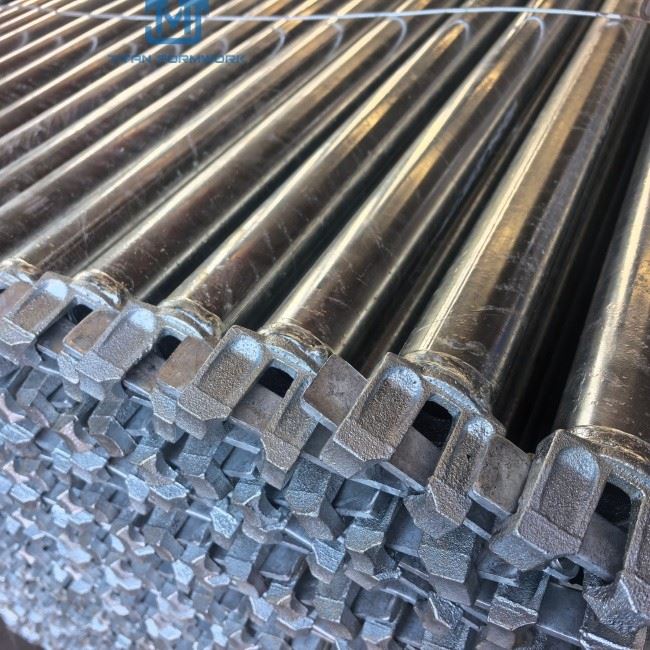

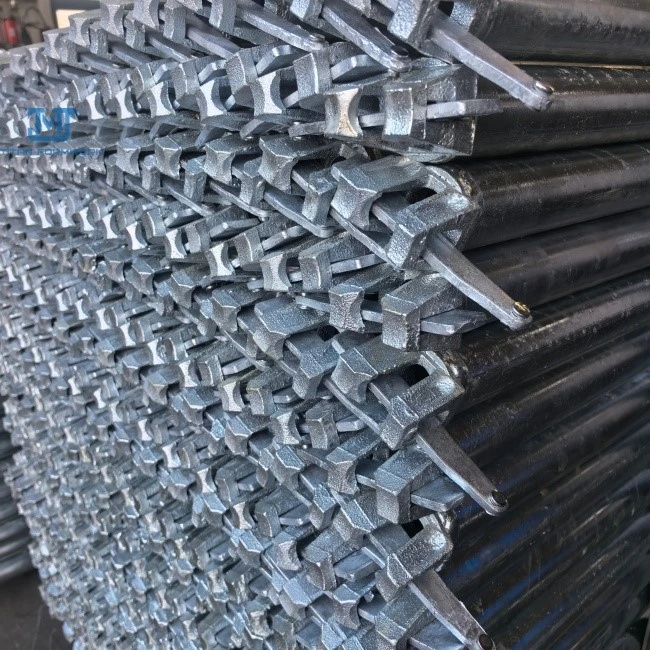

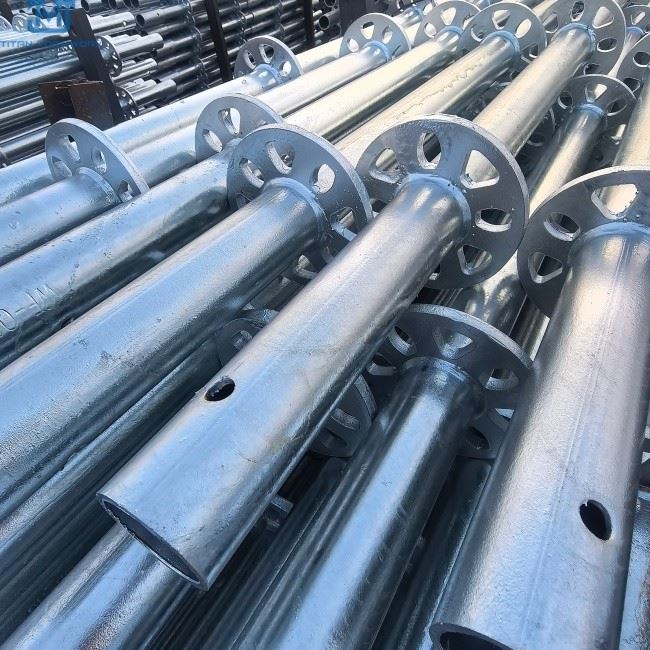

Hot Dip Galvanized Ringlock



Product name	Hot Dip Galvanized Ringlock
Material	Q355/Q235
Surface treatment	Hot Dip Galvanized
Connection	The hot dip galvanized ringlock scaffolding is connected to the pin type

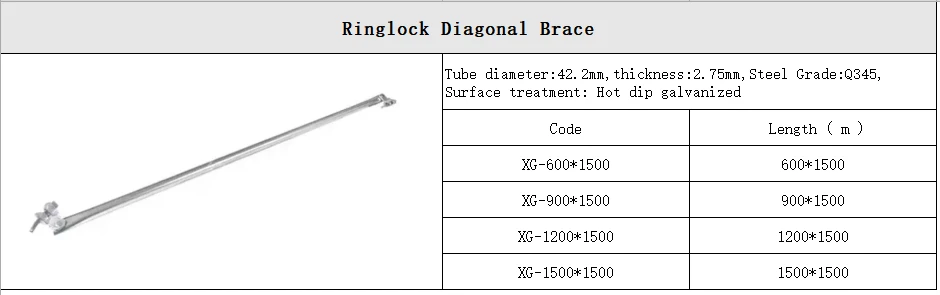

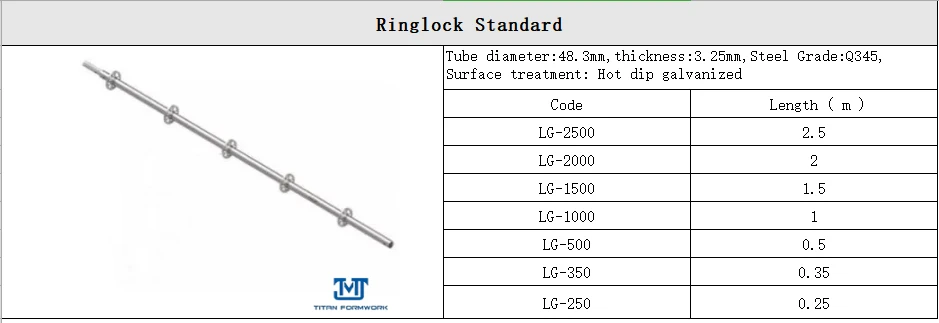

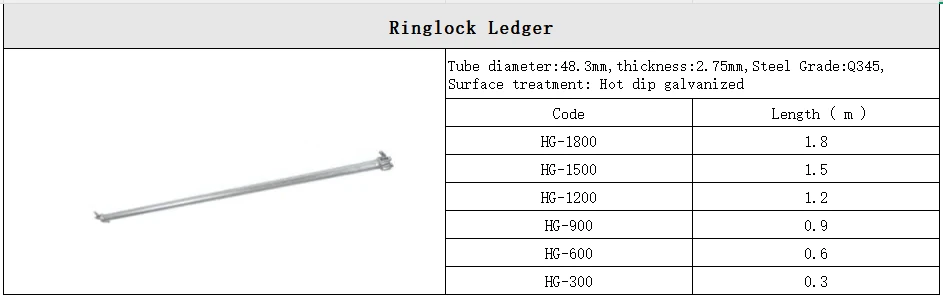

Component	Standard/ ledger/diagonal brace/ base collar/ base jack/ U head jack
Package	Bundle
Specification	48.3*3.25
Length	250mm-6000mm/as Customer's Requirement
Thickness	3.25mm
Color	Customer Requirements
Standard	EN12810/EN12811, ANSI, AS/NZS
Core Advantages	Customized support,Formulate a construction scheme

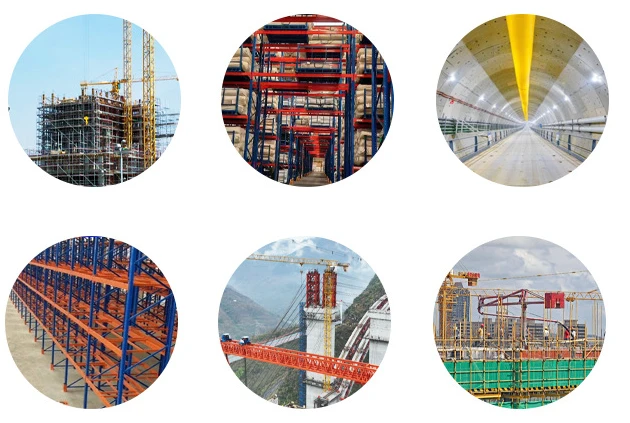

Application	Hotel, Office Building, Mall, Villa, Apartment, Hospital,etc.













Exceptional Corrosion Resistance
The hot dip galvanized process forms a dense, uniform zinc coating on the surface of the hot dip galvanized ringlock components. This coating acts as a physical barrier that effectively isolates the steel substrate from corrosive factors such as moisture, oxygen and industrial pollutants. It provides far superior anti-rust performance compared to electro-galvanizing or painting, ensuring the service life of the scaffolding in harsh outdoor or humid construction environments can be extended by 10–20 years.

Outstanding Structural Durability
The zinc-iron alloy layer formed during hot dip galvanizing is firmly bonded to the steel base material. It will not peel off easily due to collisions, vibrations or frequent assembly and disassembly during construction. This maintains the structural integrity of the hot dip galvanized ringlock connection nodes, ensuring stable load-bearing capacity and avoiding potential safety hazards caused by coating damage.

High Assembly Efficiency
The ringlock connection system itself features a modular design with standardized nodes. The smooth, burr-free surface of hot dip galvanized components reduces friction during assembly. Workers can quickly complete the connection between vertical poles and horizontal poles with dedicated pins and wedges, significantly cutting down the time and labor costs of scaffolding erection and dismantling.

Excellent Economic Benefits
Although the initial investment in hot dip galvanized ringlock scaffolding is slightly higher, the long-term maintenance cost is extremely low. There is no need for frequent repainting or rust removal maintenance during use. In addition, the components have high recyclability and can be reused for multiple projects, which greatly reduces the overall cost of the project.

Environmental Friendliness
The hot dip galvanized process uses physical coating technology without adding organic solvents or toxic and harmful chemical additives. The zinc coating is non-toxic and harmless, and will not cause pollution to the construction environment. Meanwhile, the recyclable characteristics of the components conform to the concept of green and low-carbon construction.













•  Source Factory
•  Engineering Customization
•  In stock and Fast Delivery







On December 9, 2025, a delegation led by Tian Zhengzhang, Chief Engineer, Zhang Shaofang, Vice President and Secretary-General, and Zhang Mingjie, Assistant Secretary-General, of the China Association of Construction Materials Leasing and Contracting (hereinafter referred to as CACMLC) visited Tianjin Tiantai formwork (the Tianjin Representative Office of CACMLC )for research and discussions. The delegation conducted an in-depth understanding of the construction and development of the representative office, and held in-depth exchanges on key issues concerning the industry.

At the market development level, the representatives conducted an in-depth analysis of the operational characteristics of the local Tianjin market, made a comparative study and judgment on the differentiated patterns between the northern and southern domestic markets, and explored the opportunities and challenges of developing the international markets along the Belt and Road in the context of fostering a new development paradigm.

In terms of technological innovation and product upgrading, the meeting focused on the technical features, application status and promotion prospects of formwork and scaffolding systems such as high-strength alloy formwork, hot dip galvanized ringlock scaffolding ,cuplock scaffolding , and wedge-lock scaffolding, and reached a consensus on how to drive industrial upgrading through technological innovation.

The meeting also shared insights on the development of the scaffolding industry in the Hong Kong region. All participants agreed that they would further learn about Hong Kong's experience in scaffolding design, safety management, vocational training as well as regulatory standards, so as to open up new ideas for deepening regional industrial collaboration and jointly exploring the market.

In his concluding remarks, Secretary-General Zhang Shaofang stated that the Association will continue to increase support for its Tianjin Representative Office. By improving working mechanisms, building exchange platforms, promoting advanced technologies and other means, it will drive the construction materials leasing and contracting industry to achieve higher-quality development.

This forum has provided important reference for the Association's next-step work and will help the industry make new progress in terms of standardization and specialization.
